Valve Pac

What is it?

The Valve-Pac is a factory built packaged valve vault for a submersible waste water pump station. It is an ideal way to reduce field installation time and expense at a waste water pump station. The Valve-Pac also significantly reduces the footprint of a pump station by locating the valves next to the wet well rather then in a separate confined space entry valve pit. Arriving at the job site as a complete assembled unit, the Valve-Pac is suitable for new pump stations and ideal for retrofit applications with limited time off line. Consider the Valve-Pac for your next submersible pump station.

What’s in it?

Valve-Pac Standard Features:

  • 2″, 4″, or 6″ piping configurations
  • Choice of Enclosure
    • Tip Up Fiberglass
    • Vertical Custom Fiberglass
    • Custom Modular Building
  • Bypass pumping quick connect fitting
  • Upper guide rail brackets( by others) installed
  • Pump control panel ( by others) installed
  • 300# aluminum access hatch
  • Cable brackets.

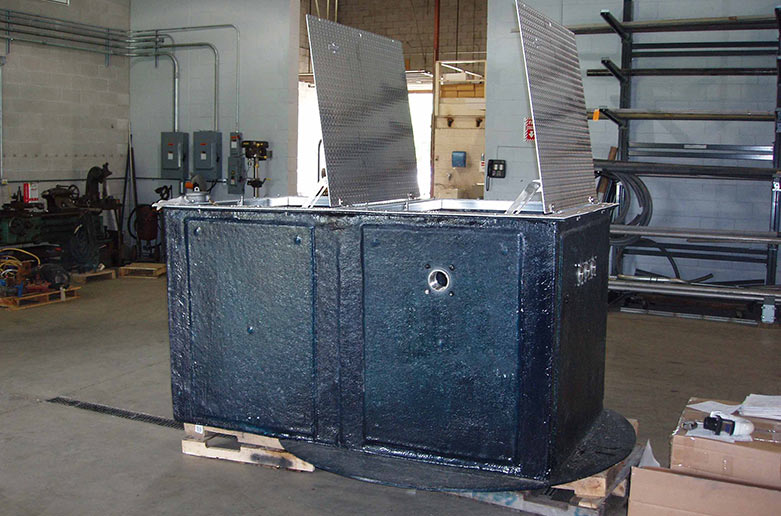

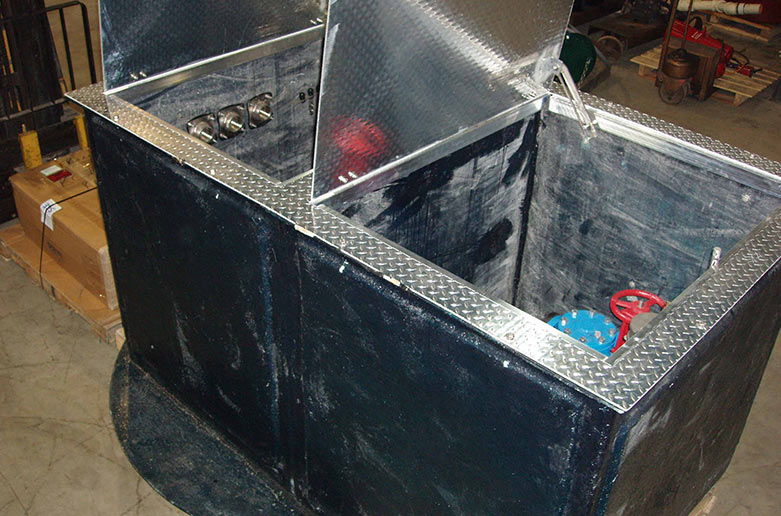

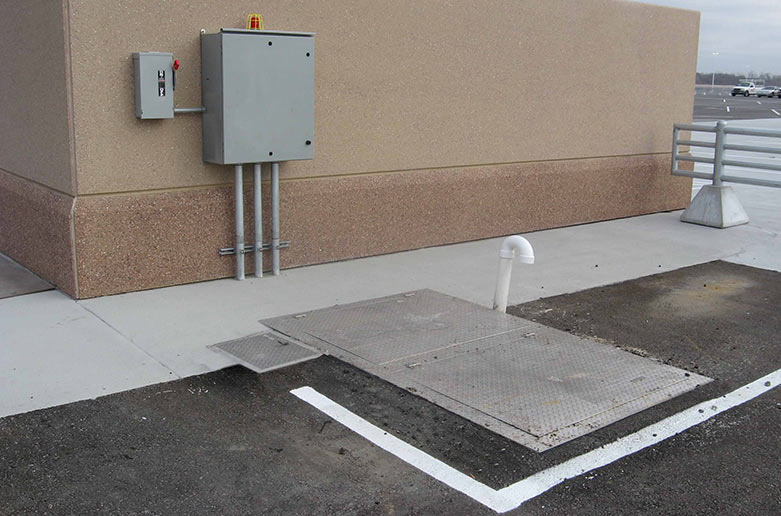

Photo Gallery

What styles are available?

Valve-Pac

The Valve-Pac eliminates the confined space entry problem associated with typical valve boxes. The valves are located above ground in a fiberglass enclosure. The package includes an automatic air release valve as well as suction and bypass connection points for by pass pumping. Designed with standard pipe fittings, the Valve-Pac meets the Hydraulic Institute recommendations and is non-proprietary to any specific pump manufacturer. Shipped complete with a pump access hatch, the Valve-Pac is ideal for quick and simple retrofit applications.

Custom Fiberglass Valve-Pac

The Custom Fiberglass Valve-Pac contains all of the same components of the version with a Custom Configured Fiberglass enclosure to suit the unique needs of the customer.
